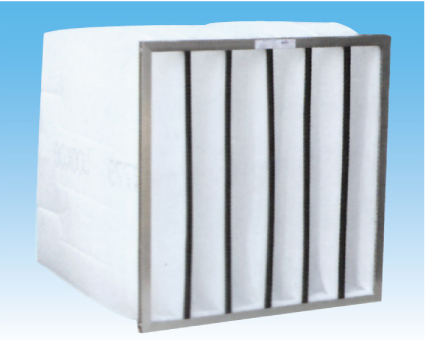

性能特點 Features
外框: 鍍鋅框，鋁框，或不銹鋼外框，可選厚度 21mm,25mm,46mm。
濾料: 聚脂合成纖維濾料；高容塵量，低阻力；超聲波無縫密合。
效率：（EN779:2002）G4,F5，
（ASHRAE 52.2:2007）MERV8,MERV10。
建議終壓損：450Pa。
Frame:Galvanized frame, aluminum frame, stainless steel frame，F(xiàn)rame can choose 21mm,25mm,46mm
Media:
high performance synthetic fiber；high dust-holding capacity,low initial
resistance；pockets are made from leak free ultra sonic machine.
Efficiency:(EN779:2002)G4,F5，
(ASHRAE 52.2:2007)MERV8,MERV10.
Recommended final pressure drop:450Pa.
應用Applications
一般建筑大樓空調之粗塵過濾系統
工業級空氣通風設備之初級過濾
汽車總裝車間的噴蠟房過濾
Building air conditioning primary filtration system
The primary filter of industrial-grade ventilation systems
widely used in industry,M-NET is the most economical ventilation and direct ways
常用規格 Common Specifications
型號 Model | 外形尺寸Dimensions | 袋數 No. of Pockets | 過濾面積Media Area (m2) | 各效率規格的初期壓損/風量 Initial Pressure Drop (Pa) /@ Air Flow (m3/h) | ||
W×H×D (mm) | G3 | G4 | F6 | |||
SNP-24×24×15-6P | 592×592×381 | 6 | 3.3 | 25/2500 40/3600 | 35/2500 60/3600 | 80/2500 |
SNP-20×24×15-5P | 490×592×381 | 5 | 2.7 | 25/2100 40/3000 | 35/2100 60/3000 | 80/2000 |
SNP-12×24×15-3P | 287×592×381 | 3 | 1.6 | 25/1250 40/1800 | 35/1250 60/1800 | 80/1250 |
SNP-24×24×22-6P | 592×592×558 | 6 | 4.6 | 25/3800 40/5400 | 35/3800 60/5400 | 55/2500 85/3600 |
SNP-20×24×22-5P | 490×592×558 | 5 | 4.1 | 25/3200 40/4500 | 35/3200 60/4500 | 55/2000 85/3000 |
SNP-12×24×22-3P | 287×592×558 | 3 | 2.3 | 25/1900 40/2700 | 35/1900 60/2700 | 55/1250 85/1800 |
Model | Dimensions | No. of Pockets | Media Area (m2) | Initial Pressure Drop (Pa) /@ Air Flow (m3/h) | ||
W×H×D (mm) | G3 | G4 | F6 | |||
SNP-24×24×15-6P | 592×592×381 | 6 | 3.3 | 25/2500 40/3600 | 35/2500 60/3600 | 80/2500 |
SNP-20×24×15-5P | 490×592×381 | 5 | 2.7 | 25/2100 40/3000 | 35/2100 60/3000 | 80/2000 |
SNP-12×24×15-3P | 287×592×381 | 3 | 1.6 | 25/1250 40/1800 | 35/1250 60/1800 | 80/1250 |
SNP-24×24×22-6P | 592×592×558 | 6 | 4.6 | 25/3800 40/5400 | 35/3800 60/5400 | 55/2500 85/3600 |
SNP-20×24×22-5P | 490×592×558 | 5 | 4.1 | 25/3200 40/4500 | 35/3200 60/4500 | 55/2000 85/3000 |
SNP-12×24×22-3P | 287×592×558 | 3 | 2.3 | 25/1900 40/2700 | 35/1900 60/2700 | 55/1250 85/1800 |
1、若遇規格、結構變更，以本公司提供的新數據為準
2、本公司接受非標準規格的訂貨
1.If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
