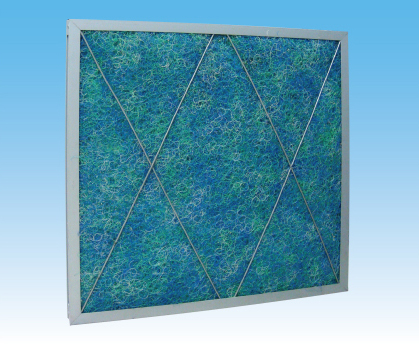

性能特點Features
外框: 鍍鋅框，鋁框，或不銹鋼外框
濾料: 特制的樹脂纖維，可凈化空氣，亦可凈化污水，
阻力低，可反復清洗，經濟性高，強度好，耐沖擊
效率：（EN779:2002）G4,F5；
（ASHRAE 52.2:2007MERV7,MERV8。
建議終壓損：250Pa。
Frame:Galvanized frame, aluminum frame, stainless steel frame
Media:
Resin fiber，Acid, corrosion，Purify the air，Purification of sewage easy
to install and maintain ,High absorb capacity ,nice performance ,low
operation Cost，low resistance，Reusable cleaning, long life
Efficiency:(EN779:2002 filter class)G4，F(xiàn)5
(ASHRAE 52.2:2007 filter class)MERV7,MERV8
Recommended final pressure drop:250Pa.
應用Applications
工業級空氣通風設備之初級過濾
有酸堿的環境系統中使用
污水處理廠凈化污水
The primary filter of industrial-grade ventilation systems
Need the system of acid and alkali
Sewage treatment
常用規格 Common Specifications
型 號 Model | 外形尺寸Dimensions | 額定風量 Rated Air Flow (m3/h)
| 初始壓降 Initial Pressure Drop (Pa)
| |
寬×高×深 | ||||
SMV-1000*1000*50 | 1000X1000X50 | 4000 | 55 | |
SMV-1000X1000X30 | 1000X1000X30 | 4000 | 50 | |
SMV-500X500X50 | 500X500X50 | 1000 | 55 | |
SMV-500X500X30 | 500X500X30 | 1000 | 50 |
Model | Dimensions | Rated Air Flow (m3/h)
| Initial Pressure Drop (Pa)
| |
W×H×D(mm) | ||||
SMV-1000*1000*50 | 1000X1000X50 | 4000 | 55 | |
SMV-1000X1000X30 | 1000X1000X30 | 4000 | 50 | |
SMV-500X500X50 | 500X500X50 | 1000 | 55 | |
SMV-500X500X30 | 500X500X30 | 1000 | 50 |
1、若遇規格、結構變更，以本公司提供的新數據為準
2、本公司接受非標準規格的訂貨
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
