預過濾系列

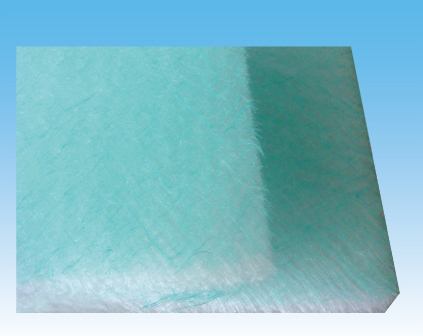

SVBB 玻璃纖維過濾材料

性能特點 Features

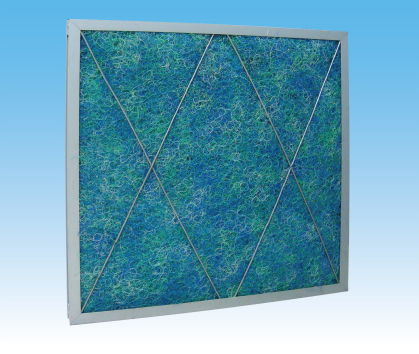

外框：可整卷或裁片供應，亦可加裝鍍鋅框或鋁合金框。
濾料：由強彈性，抗斷裂的玻璃纖維過濾材料制成，纖維呈遞增結構，捕塵率高，材料上附防菌層，綠色為進風面，白色為出風面，不含硅。
效率：（EN779:2002 filter class）G3,G4,F5
（ASHRAE 52.2:2007 filter class）MERV6,MERV7,MERV10。

Frame:Supply of the entire volume Or plus galvanized border or aluminum alloy frame.
Media:Continuous filament glass fibres,resin bonded ，Smooth airflow through paint booths ，F(xiàn)ull depth particle collection Not silicon.
Efficiency:(EN779:2002 filter class)G3,G4
(ASHRAE 52.2:2007 filter class)MERV6,MERV7.

應用Applications
空調和涂裝系統的預過濾
適用于汽車，家具，機械零部件等的干式噴漆系統及車間
For use as a prefilter in air conditioning,and spray booth extract systems
Well suited for the dry-handling paint-spray booth as for the automobile,furniture and machinery parts painting

常用規格 Common Specifications

EN779過濾級別 Filter class to EN779		G3（EU3）	G4(EU4)
型號 Model	Type Units	SVBB-70	SVBB-100
平均計重效率 Average arrestance	%	93-97	98-99
額定風量 Nominal air volume	m3/h	2500-6300	2500-6300
初期壓損 Initial pressure drop	Pa	7-40	14-60
風速 Air speed	m/s	0.7-1.75	0.75-1.75
厚度 Thickness	mm	70	100
重量 Weight	g/m2	240-250	350
容塵量 Dust holding capacity	g/m2@80Pa and 0.7m/s	3500-4700	3900-5050
卷 Rolls	L*W m	1×20,2×20	1×20,2×20

Filter class to EN779		G3（EU3）	G4(EU4)
Model	Type Units	SVBB-70	SVBB-100
Average arrestance	%	93-97	98-99
Nominal air volume	m3/h	2500-6300	2500-6300
Initial pressure drop	Pa	7-40	14-60
Air speed	m/s	0.7-1.75	0.75-1.75
Thickness	mm	70	100
Weight	g/m2	240-250	350
Dust holding capacity	g/m2@80Pa and 0.7m/s	3500-4700	3900-5050
Rolls	L*W m	1×20,2×20	1×20,2×20

1、若遇規格、結構變更，以本公司提供的新數據為準
2、本公司接受非標準規格的訂貨

1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
