高效過濾系列

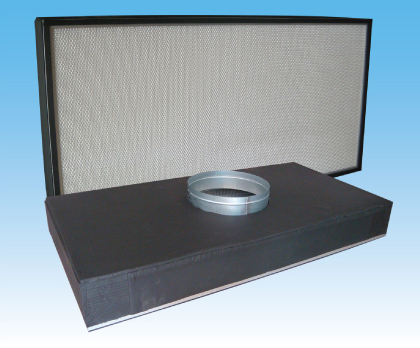

SDB 拋棄式高效送風口

性能特點Features

外框：箱體采用鍍鋅鋼板、鋁合金型材或不銹鋼板制成，外貼保溫層。

濾料：玻璃纖維；高容塵量，低阻力。

效率：（EN779:2002）H13，H14

（ASHRAE 52.2:2007）MERV18，MERV19。

每個濾器經嚴格檢測。

建議終壓損：450Pa。

使用溫度：常溫。

Frame:High-quality galvanized steel sheet, aluminum alloy extrusions orstainless steel frame with externally applied fireproof heat-insulator.

Media: Using special glass fiber filter paper as the filter material，high dust-holding capacity,low initial resistance.

Efficiency:(EN779:2002)H13,H14

(ASHRAE 52.2:2007)MERV18,MERV19

Each filter is through rigorous testing.

Recommended final pressure drop:450Pa.

應用Applications

用于高潔凈度廠房和潔凈室的送風系統的終端過濾，有效地確保氣流速度和防止渦流

Suitable as terminal filtration of air supply system in cleanworkshops and clean rooms required the high cleanliness. Availably toensure air flow speed and prevent swirl.

常用規格 Common Specifications

型號Model	箱體尺寸Box Dimensions (mm)	進風管直徑Inlet Diameter (mm)	初始?jí)簱p /風量 Initial Pressure Drop (Pa) /Air Flow (m3/h)
型號Model	箱體尺寸Box Dimensions (mm)	進風管直徑Inlet Diameter (mm)	100	125	150		180
SBD-570	570×570×150	Φ250 Φ300 Φ350	500	620		780	870
SDB-600	600×600×150		550	690		870	970
SDB-610	610×610×150		570	715		900	1000
SDB-1170	1170×570×150		1030	1290		1630	1800
SDB-1200	1200×600×150		1100	1390		1760	1950
SDB-1210	1210×600×150		1120	1400		1780	1970
SDB-1220	1220×610×150		1150	1440		1820	2020

1、若遇規格、結構變更，以本公司提供的新數據為準

2、本公司接受非標準規格的訂貨

1. If you meet specifications, structural changes, the company provides the newest data shall prevail

2.We accept the orders of non-standard specifications
